Korona Shophero Integration Manual

Request a Demo

About Octopus Bridge

Octopus Bridge is an application that enables brick & mortar retailer to connect their POS/ERP system with their e-commerce website and online marketplaces.

The flowchart below shows Octopus Bridge linking POS data to online stores and marketplaces. It also shows the item information uploaded from POS/ERP to E-commerce and order quantity pushed back to POS from the e-commerce platform so that the stock can be in Sync.


Octopus-online-integration


After you sign-up with Octopus Bridge, you will be given the login details. Login details are your Username and Password. You can login to your account at http://gui.octopusbridge.com/octopus

Once you login to Octopus Bridge using your login details, you are automatically redirected to the Product Management tab where you will be able to see all the items uploaded from the POS.

Product Management

When POS items are uploaded into Octopus Bridge, they show up under My Products’ tab in the Product Management module. This is where a user can further modify the products before they are pushed to an E-commerce platform.

The top most item or the first item displayed in this page is the last item uploaded from the POS. Example shown below: The item with Product SKU number “7909510673809” is the last item uploaded from the POS.


My Products - Octopus





8. Archive Product: To archive a product, click on the product(s), you want to archive and click on the delete button below. 9. Select Item(s): To select one or multiple items, click on the checkbox in front of it.

My Product 2




Edit Product

Clicking on Product SKU or Item Name will redirect you to ‘Edit product’ page. This is where you can edit products’ information that are linked from the POS to Octopus Bridge. You can perform the following actions in Edit Product page:

  1. Edit Product Name: You can create new product name to be displayed in your E-commerce platform. Make sure to click on the box to prevent over-writing Product Name from the POS.
  2. Create Parent SKU: Make sure to create a Parent SKU for creating matrix items.
  3. Create Product Description: If you want to create a new description to be displayed in your E-commerce platform, make sure to check this box to prevent POS description from over-writing description in your E-commerce platform.
  4. Matrix item attributes: If you are creating a matrix item, make sure to input Style Name and Style Value.
  5. Upload Product Images: You can upload up to five images per item in Octopus. Make sure to reload page after uploading image/s.

Octopus-edit-products

Publish Items to Shopping Cart/Marketplace

After you have updated an item under ‘Edit Item’ page, you can go ahead and publish this item to a specific Shopping cart or Marketplace. Under Product Management tab.

1. First you need to select which item/s you want to publish. The example below shows we are selecting three items.

2. Next, select which Shopping cart or Marketplace you want to publish the item. In the example below we are selecting Shopify as our shopping cart.

3. Then click on the Add icon on the right to publish. Once you are done, items can now be viewed under the Shopify 'bucket.

Publishing-Items-to-eCommerce-Octopus

Note: Only Shopping carts and Marketplaces that you signed up for, will be shown in My Products page.


Shopping Cart Module

Once you have selected and added your product items to a specific Shopping cart module or Marketplace module ‘bucket’, they will start appearing under the respective bucket. Images are shown below.

Marketplace Tab

Marketplaces

Shopping Carts tab

Shopping cart

Import Products

If you do have a point-of-sale system or want to quickly edit items by Exporting / Importing multiple items, Import Products is a great option.

1. Click Add New Template to start .

2. Click History to select a file previously uploaded on Octopus Bridge.

3. Click Import New to import a new template after it has been created.

4. Action:
  • Notify- you can type in your email to get notifications if modifications are being made in the file.
  • Modify- click to update files.
  • Delete- delete existing files from the list.
All-Import-Templates-Octopus

Add New Template:

You can view the past import activities in the channel by clicking on Import History.

1. File Type: Clicking this will create a drop-down box where you can select the File Type.

2. File Name: Type in the name of the file you wish to create.

3. Column Delimeter and Text Qualifier: Use only if file type is a text file.

4. Save file after choosing the file type and the file name.


Add-New-Templets-Octopus

POS Code Mapping

You can use POS code mapping if you want to map POS values to octopus bridge values. POS values are commonly in a coded format. For example, blk. You need to set blk into black which is more understandable for users viewing the website. You can also map multiple values at the same time using a spreadsheet format.

  1. POS Code Upload Format: You can download the excel format by clicking on the “POS Code Upload Format” link.
  2. Choose File: Once you have made changes in the excel format, select spreadsheet file to upload.
  3. Click on upload after selecting file.
  4. Select Field Name.
  5. Replace All Value: Click to replace value after selecting Field Name.
  6. Item per Page: Clicking this will create a drop-down box where you can select how many product items to be displayed per page.
  7. Search: You can search specific value using the search bar.
  8. Channel Value: Edit Channel value here.

POS-Code-Mapping

Order Management

Order management tab is where you can view all the order details downloaded from your E-commerce platform. Click on View Orders and you will be redirected to the order management page.


Order-Management-Octopus

Order Search

You can search for a specific order with the following search criteria:

  • Source of Order: You can select the shopping cart/marketplace from where the order was placed
  • Order Status: Ordered/Shipped/Declined
  • Order No: Specific order number of shopping cart/marketplace
  • Username/email address: Customer’s username or email address
  • Date Filters: Sort order on a specific date period
  • SKU: Item SKU Number

order 2

All Orders:

Order Date: The date and time when the order was downloaded

Channel Mgr Order #: Each order, when downloaded into Octopus, is given an Octopus order number. This number is also pushed to the point of sale system for reference.

Marketplace Order #: This is the order number received from your website or marketplace. The number is prefixed by the platform abbreviation for easy reference. This number is also downloaded into the point of sale system.

Customer Bill To and Customer Ship-To Details are received from the website.

Total: The total amount of the order.

Status: Depending on where the order is coming from, it would be either in Pending/Processing or Paid status. Orders coming from marketplaces are marked Paid as they are already paid for. Orders coming from websites built on Magneto/Woo/etc might be marked as Processing depending on how the website is set up.

Tracking: This feature is only applicable for Offline POSs, such as RetailPro, RMS etc. Octopus Plugin updates the Tracking Number on our system generated by the Shipping company of the Merchant. It also works for the merchants, who uses Ship Station and Ship Work integration with Octopus.

Action: When orders are downloaded from website into Octopus, all items must match with items uploaded from the POS. For example, if an ordered item has a different SKU than what was uploaded from POS, the order will NOT be downloaded. In such cases, Edit link will show. This allows you to Edit the order and fix the SKU number so that it matches with one of the existing items. After the SKU has been fixed, the order would download during the next sync cycle. Orders not showing Edit indicates that the orders have been downloaded into POS and cannot be edited.

Page Tab: You can navigate to a particular page by clicking on that particular page number.

order management

Downloading Orders

Orders are downloaded automatically from the E-commerce platform to Octopus on a scheduled basis. You can also manually download orders from a specific E-commerce platform. Just click on the orders tab in the Shopping cart module you selected then click on the ‘Download orders from Shopify’ button.

download orders

Order Details

In order details page, you can view all the order information downloaded from the e-commerce platform to Octopus.

Order Details: Order details section contains the following information:

  • Order No
  • Order Date
  • Current Order Status
  • Billing Address
  • Shipping Address
  • Customer Contact Details

Order Summary: Order summary section contains the following information:

  • SKU
  • Identification number
  • Seller SKU
  • Description
  • Quantity
  • Unit Price
  • Shipping Amount
  • Tax
  • Discount
  • Grand Total

Order details

Logs

You will be able to View all the Octopus Bridge activities and errors in the ‘Logs’ tab.

1. You can search logs on a specific date period or search using a keyword in the search tab at the top.

2. You can export logs to a CSV in your local drive.

3. You can view Log details by clicking on the ‘view’ button on the right-hand side of the screen.


All-Logs
Log Details is where you can view the log activities or the error details in the channel.

Logs Details

Korona Settings Details

The Settings tab is where you enter Korona account details to connect Korona with Octopus.

  1. To connect Korona with Octopus, enter the following details:
  • Korona Account ID: To get Korona account ID,
  • Login to your Korona cloud POS account
  • Go to Settings/Data Exchange.
  • Copy the Account ID shown there and add in settings.

Settings--Korona

  • Korona username: Enter your Korona cloud POS user name.
  • Korona Password:  Enter your Korona cloud POS password.

Korona-Settings

  1. Please select Sync Status to Enable if you want to automatically update Octopus products from Korona.

Note: You can select the Sync Status as Disable while you’re still setting it up. Please remember to go back and change to Enable after setup is completed and tested.

Korona Custom Rules

This is where we set up custom rules that help set up integration between Korona and Octopus. These settings include different settings, price mappings and schedule settings etc.

Korona Setting Panel

Korona-Custom-Rules-1

  1. Inventory ID
  • To get Inventory ID, login to your Korona cloud account and go to Inventory>>Inventories and lists of inventories will be displayed.

Korona-Inventory-1 (1)

  • Select the inventory list you want to choose and click on Edit Inventory.

Korona-Inventory-2

  • Inventory ID will be displayed in the URL.

Korona-Inventory-3

  1. Cashier Name
  • To get Cashier Name, login to your Korona cloud account and go to Employees>>Cashiers. You will see the list of cashiers.
  • Enter the cashier name you want to choose.

Korona-Cashier-1

  1. Cashier ID
  • Select the cashier name and click on Edit.
  • The cashier ID will be displayed in the URL.

Korona-Cashier-2

Korona-Cashier-3

  1. Organizational Unit Name
  • To get organizational Unit name, login to your Korona Cloud account and go to Settings>>Organizational Units.
  • Enter the organizational unit from the list of organizational units given.

Korona-Organizational-Unit-1

  1. Organizational Unit ID
  • Select the organizational unit name and click on Edit.
  • The organizational unit ID will be given in the URL.

Korona-Organizational-Unit-2

Korona-Organizational-Unit-3

  1. Point of Sale Name
  • To get Point of Sale name, login to your Korona Cloud account and go to Settings>>POS Profile Names.
  • Enter the POS Profile name from the list of POS Profiles.

POS-Profile-1

  1. Point of Sale ID
  • Select the POS Profile name and click on Edit.
  • The POS Profile will be displayed in the URL.

POS-Profile-2

POS-Profile-3

  1. Tax Name
  • To get Tax Name, login to your Korona Cloud account and go to Settings>>Taxes.
  • Enter the Tax Name from the list.

Tax-Name-1

  1. Tax ID
  • Select the Tax Name and click on Edit.
  • The Tax ID will be displayed in the URL.

Tax-Name-2

Tax-Name-3

Korona Price Mapping

Enter the Korona price you want to map with different prices in Octopus.

Korona-Custom-Rules-2

Korona Schedule Settings

Sync All Inventory: Check this box if you want to sync all the products from Korona POS.

Korona-Custom-Rules-3

Korona Sync

After applying all settings, change the sync status in settings to Enable and click on Start Synchronization. This will start pulling your POS data into Octopus.

Korona-Sync

Connect Octopus to Shop Hero

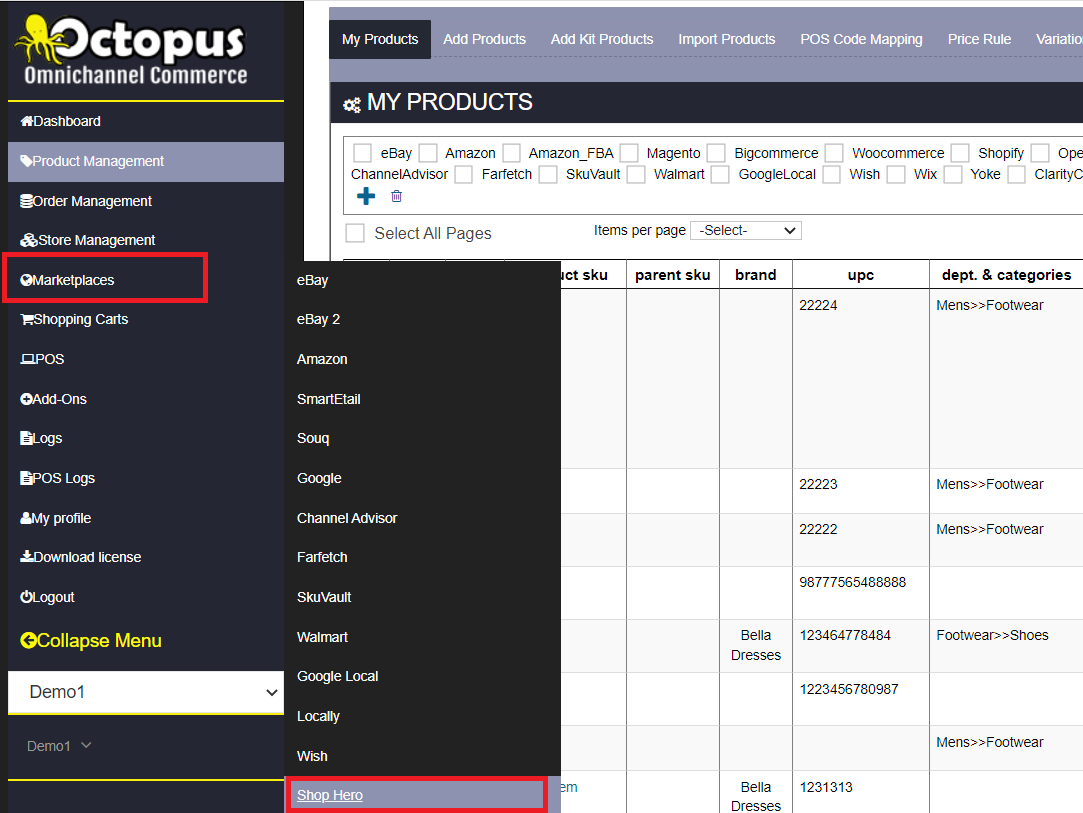

  1. Go to https://gui.octopusbridge.com/octopus
  2. Login using user octopus account credentials.
  3. Once you have logged in, go to Marektplace/Shop Hero.

Shophero-4

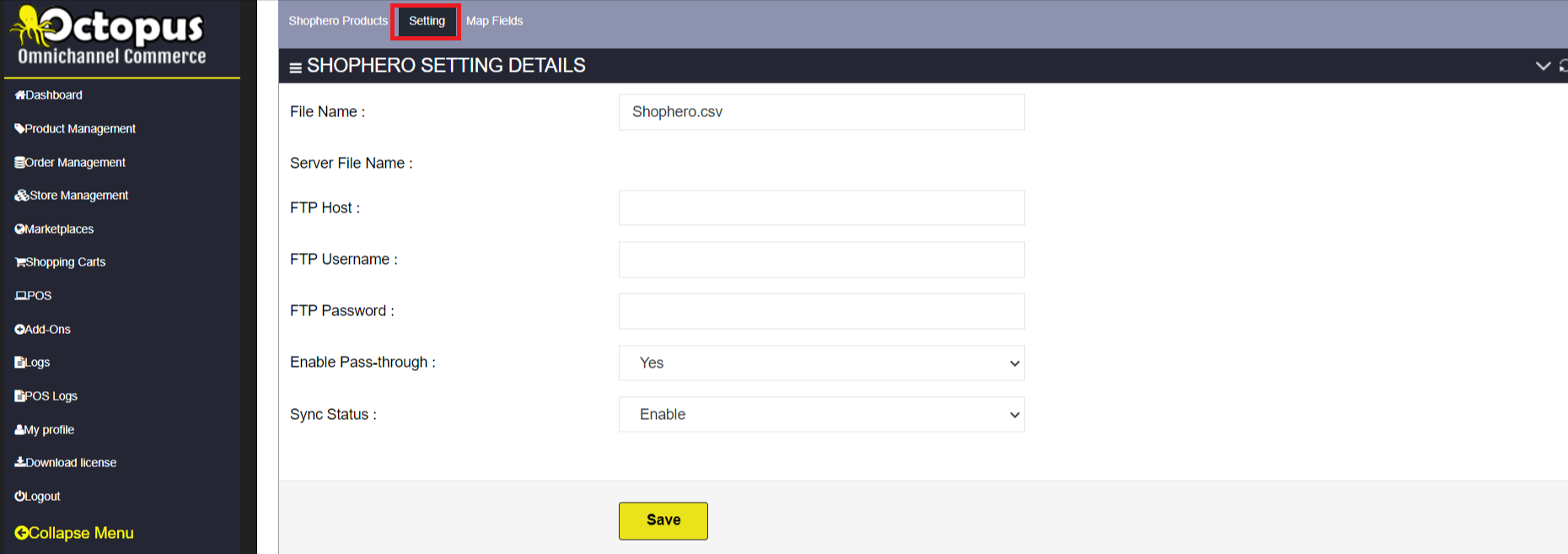

  1. Click on settings and enter the following information:
  1. Server: Enter the FTP host name.
  2. Username: Enter the FTP username.
  3. Password: Enter the FTP password.
  4. Port: Enter the FTP port name.
  5. Enable Pass-through: When setting up the configuration for the first time, this option should be set to No.
  1. Setting No, means that any items uploaded from the POS to Octopus will remain at Channel level. These items will not be pushed to your Shopify platform unless it is done manually. This is the recommended setting while configuring the system for the first time.
  2. You also may set this to No if you have set up your POS to upload All items into Octopus, but you do not want to send All items, automatically, to your eCommerce platform. Setting this to No gives you the opportunity to make items web ready before publishing them to your website.
  3. Once you set it to Yes, any items uploaded from the POS will automatically be pushed to your Shopify platform. This is recommended only when the settings have been fully configured and tested.

Shophero-2

  1. Sync Status: Set Sync status to Enable.



Shop Hero Product Module

In Product Management, when an Item is selected to be published to an eCommerce platform, it is first sent to the specific Shopping Cart Module (SCM). SCM for each supported shopping cart, including marketplaces such as Amazon and eBay, gives users the ability to define shopping cart specific rules.

These rules may vary based on the eCommerce platform that you are using. For example, Items being sent to Shop Hero may have a different Product Name, Prices, and Quantity as compared to items being sent to eBay.

Whereas Product Management module shows all the products uploaded from the POS, Shop Hero Product module shows only those items that are actively synchronizing with Shop Hero.

  1. Hover your mouse to the Marketplace tab.
  2. Select Shop Hero under the drop down menu.
  3. Click on Shop Hero products.

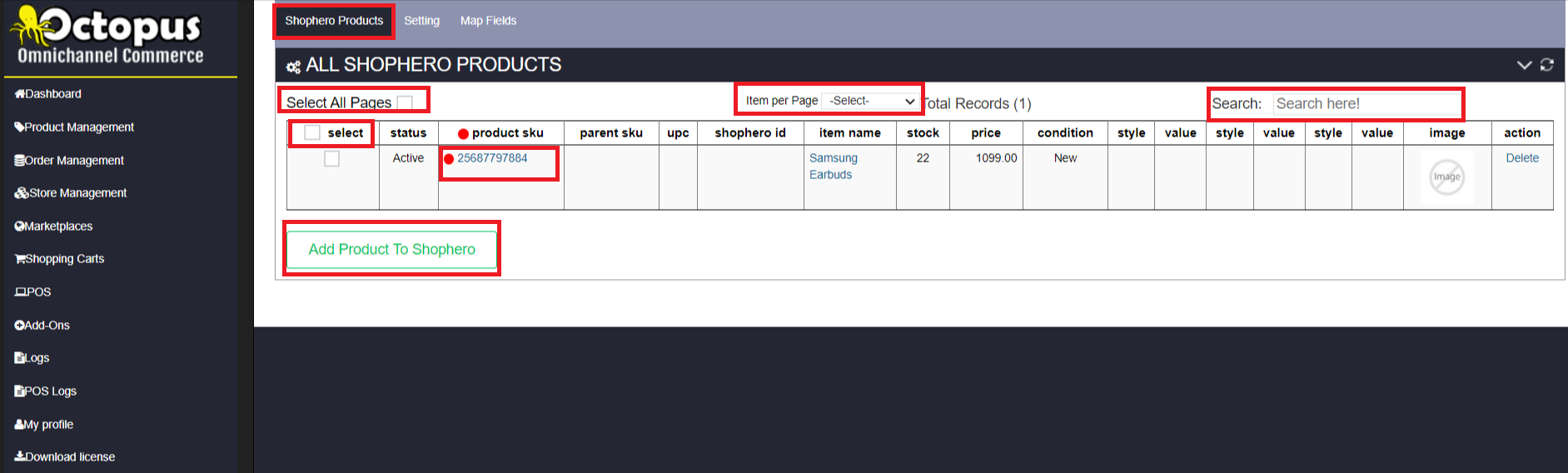

All Shop Hero Products:

  1. This screen shows items that have been enabled to sync with Shop Hero and should already be in sync. To publish items to Shop Hero manually, Select All Pages and Publish.
  2. You can also use CheckBoxes to select a specific item to publish.
  3. Add Product to Shop Hero: This button allows you to add products to a Shop Hero website.
  4. Search tab: This tab allows you to search for a specific item by entering the product SKU or keyword.
  5. Item per Page: Clicking this will create a drop-down box where you can select how many product items to be displayed per page.

Shophero-1

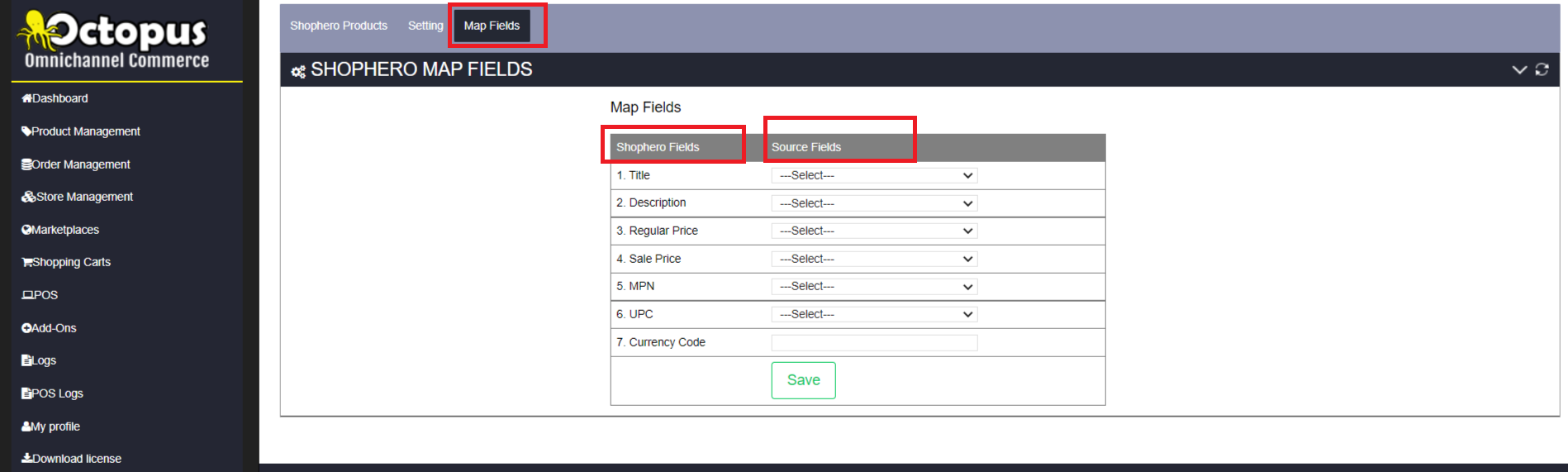

Map Product Attributes

Merchants using various POS systems may use any of the fields within a POS while creating items. Map Fields option allows a merchant to map shop Hero product fields with their own POS product fields.

For example, shop Hero website Product Name (Title) can be mapped with any of the POS data fields provided in the pull-down menu.

This also provides an option NOT to send certain POS data to shop Hero website.

Some fields, such as, SKU and Quantity are mandatory and are automatically updated in the website.

  1. The left-hand side shows the shop Hero fields.
  2. The right-hand side shows the POS fields.

Shophero-3
