After you sign-up with Octopus Bridge, you will be given the login details. Login details are your Username and Password. You can login to your account at http://gui.octopusbridge.com/octopus
Once you login to Octopus Bridge using your login details, you are automatically redirected to the Product Management tab where you will be able to see all the items uploaded from the POS.
You can search for a specific item with the following search criteria:
If Product items are not shown after doing search, it means that the product item is not yet synced from the POS. Also, make sure that in searching items, you are using the correct Item SKU or Parent SKU. Example below shows that item is not yet found in Octopus Bridge.
Shopping Cart Module
Once you have selected and added your product items to a specific Shopping cart module or Marketplace module ‘bucket’, they will start appearing under the respective bucket. Images are shown below.
Marketplace Tab
Shopping Carts tab
Order Search
You can search for a specific order with the following search criteria:
All Orders:
Order Date: The date and time when the order was downloaded
Channel Mgr Order #: Each order, when downloaded into Octopus, is given an Octopus order number. This number is also pushed to the point of sale system for reference.
Marketplace Order #: This is the order number received from your website or marketplace. The number is prefixed by the platform abbreviation for easy reference. This number is also downloaded into the point of sale system.
Customer Bill To and Customer Ship-To Details are received from the website.
Total: The total amount of the order.
Status: Depending on where the order is coming from, it would be either in Pending/Processing or Paid status. Orders coming from marketplaces are marked Paid as they are already paid for. Orders coming from websites built on Magneto/Woo/etc might be marked as Processing depending on how the website is set up.
Tracking: This feature is only applicable for Offline POSs, such as RetailPro, RMS etc. Octopus Plugin updates the Tracking Number on our system generated by the Shipping company of the Merchant. It also works for the merchants, who uses Ship Station and Ship Work integration with Octopus.
Action: When orders are downloaded from website into Octopus, all items must match with items uploaded from the POS. For example, if an ordered item has a different SKU than what was uploaded from POS, the order will NOT be downloaded. In such cases, Edit link will show. This allows you to Edit the order and fix the SKU number so that it matches with one of the existing items. After the SKU has been fixed, the order would download during the next sync cycle. Orders not showing Edit indicates that the orders have been downloaded into POS and cannot be edited.
Page Tab: You can navigate to a particular page by clicking on that particular page number.
Downloading Orders
Orders are downloaded automatically from the E-commerce platform to Octopus on a scheduled basis. You can also manually download orders from a specific E-commerce platform. Just click on the orders tab in the Shopping cart module you selected then click on the ‘Download orders from Shopify’ button.
In order details page, you can view all the order information downloaded from the e-commerce platform to Octopus.
Order Details: Order details section contains the following information:
Order Summary: Order summary section contains the following information:
The Settings tab is where you enter Lightspeed API details to connect Octopus with Lightspeed.
To generate API token for Lightspeed, login to Octopus, go to POS > Lightspeed > Settings page and click on Generate Token button. It will redirect you to Lightspeed website and ask for the login details. Login and authorize Octopus application. This will generate API details and automatically populate.
Please select Sync Status to Enable if you want to automatically update Octopus products from Lightspeed.
Click “Save”.
Note- You can select the Sync Status as Disable while you’re still setting it up. Please remember to go back and change to Enable after setup is completed and tested .
Please fill in the Lightspeed details here. This information is used when orders are pushed into your POS
Please follow the steps below for filling in the above SettingsPanel:
1. Register ID: To get Register ID, go to Lightspeed login page.
2. Employee ID: To fill in Employee ID, go to Lightspeed Settings.
After clicking on Employee Setup, employee details will open (shown as below). Click on employee name.
While clicking on employee name, in the URL box employee id will be shown as (id=1)
3. Payment ID: To fill in the payment ID, click on Settings.
Please map web price levels with your Lightspeed price levels. The web price levels will be sent to your eCommerce platform.
You can set scheduler time for automatic updates or upload product data from Lightspeed. Scheduler time is set by time intervals.
Sync All Inventory – Check this box if you want to sync all products from the POS.
Download Images from – From the drop-down menu, please select Item type for the images (Line item or Main item).
SKU As – From the drop-down, select System SKU, Custom SKU, or Manufacturer SKU.
The data mapped here will be used for your ecommerce platform.
After the initial product pull, you can define which attributes of an item should NOT be pulled from the POS again.
This feature is useful if you are using Octopus to manage your items. Please see the image below:
After applying all settings, please click on Start Synchronization. This will start pulling your POS data into Octopus.
Installing the extension

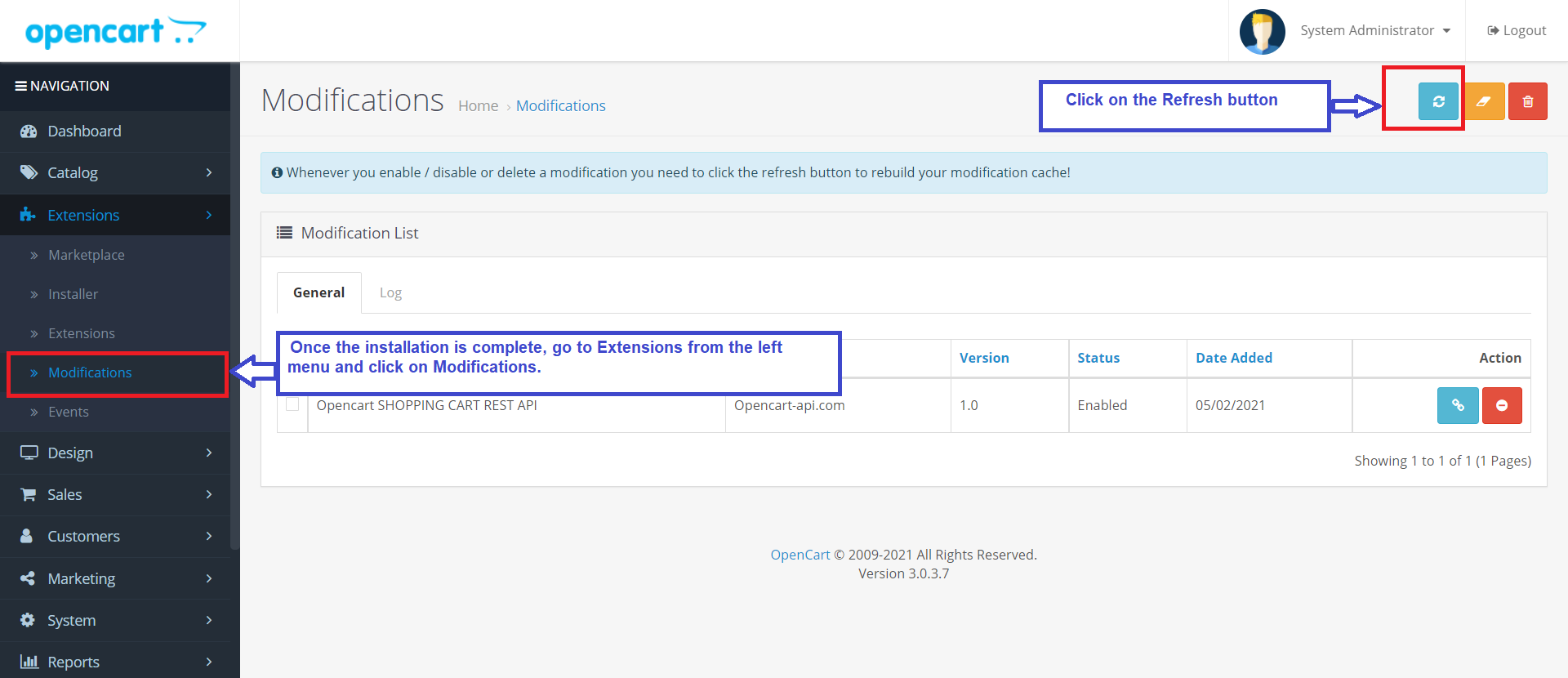

1. After you buy the extension, you will receive an email with ZIP folder and order ID. Unzip the folder and upload this extension with the help of FTP. Once the installation is complete, go to Extensions from the left menu and select Modifications.
2. Click on the Refresh button on the top.
Generating Opencart API Key
AnOpencart Key is necessary to connect your Opencart store to Octopus. Please follow the steps below to create an API key.
1. Login to your Opencart Admin portal.

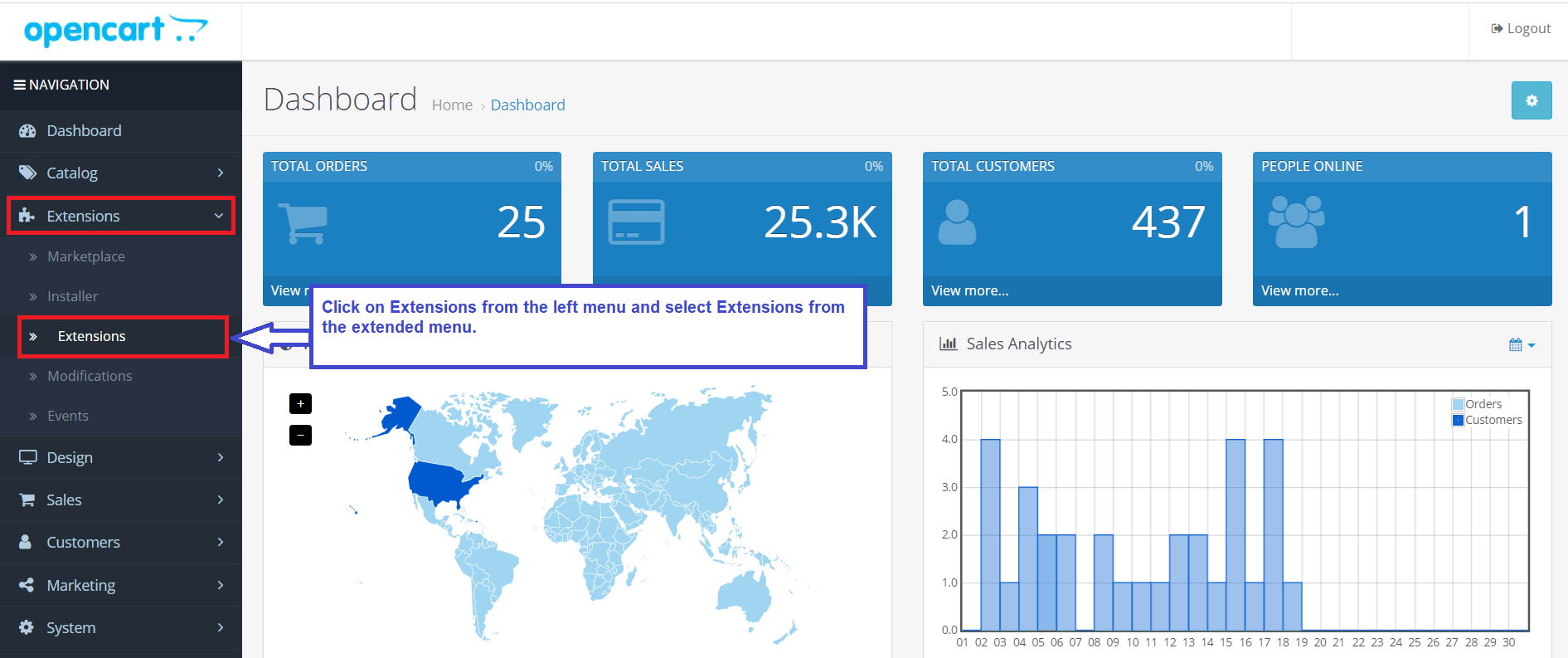

2. Click on Extensions from the left menu and select Extensions from the expanded menu.

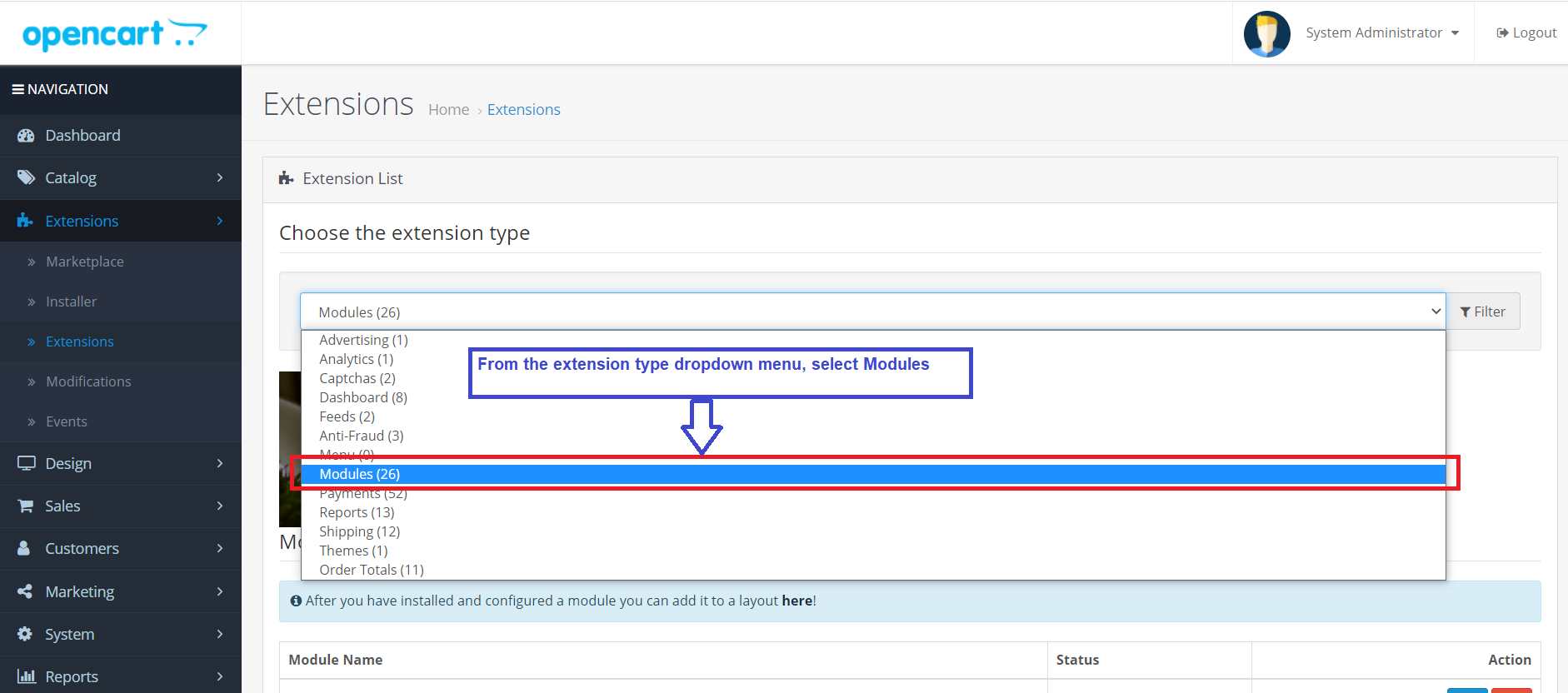

3. From the Extension Type dropdown menu, select Modules.

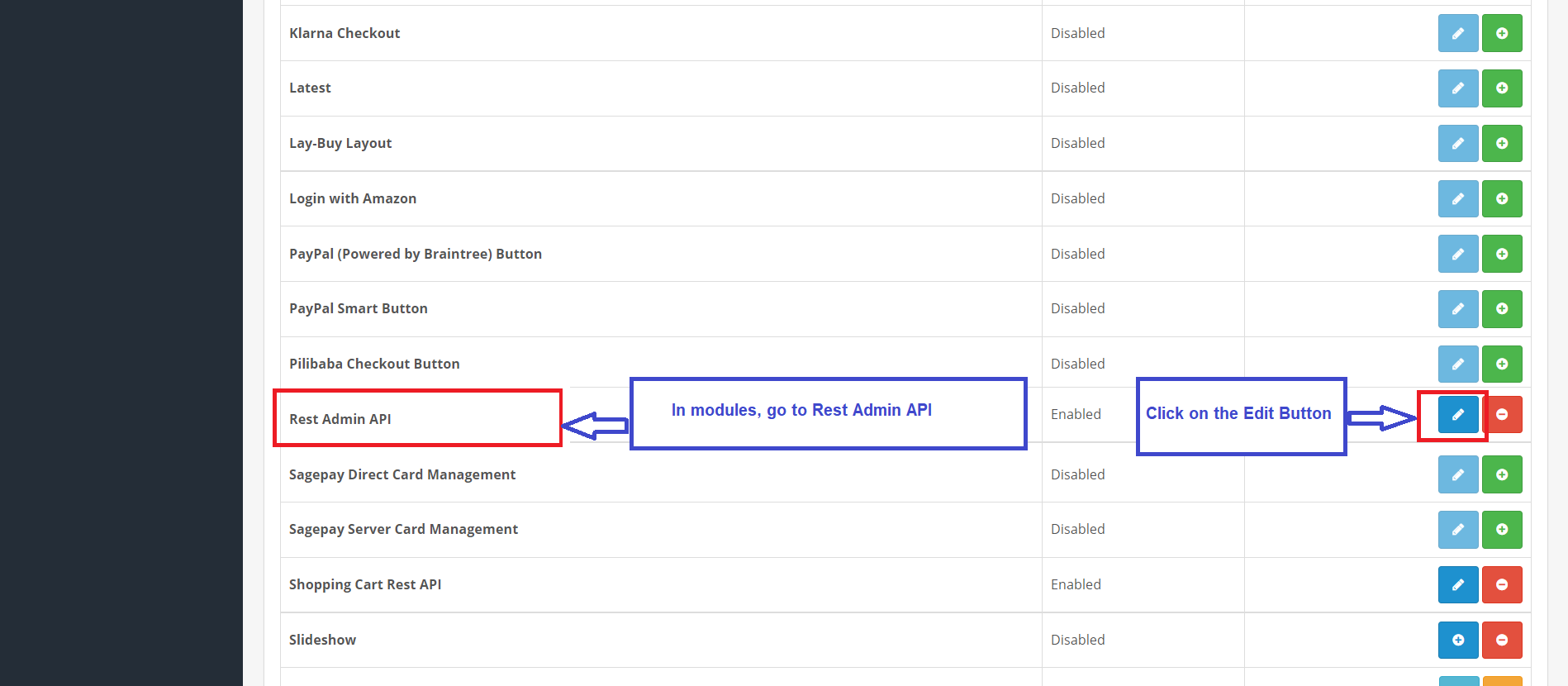

4. In modules, go to Rest Admin API and click on the edit button.

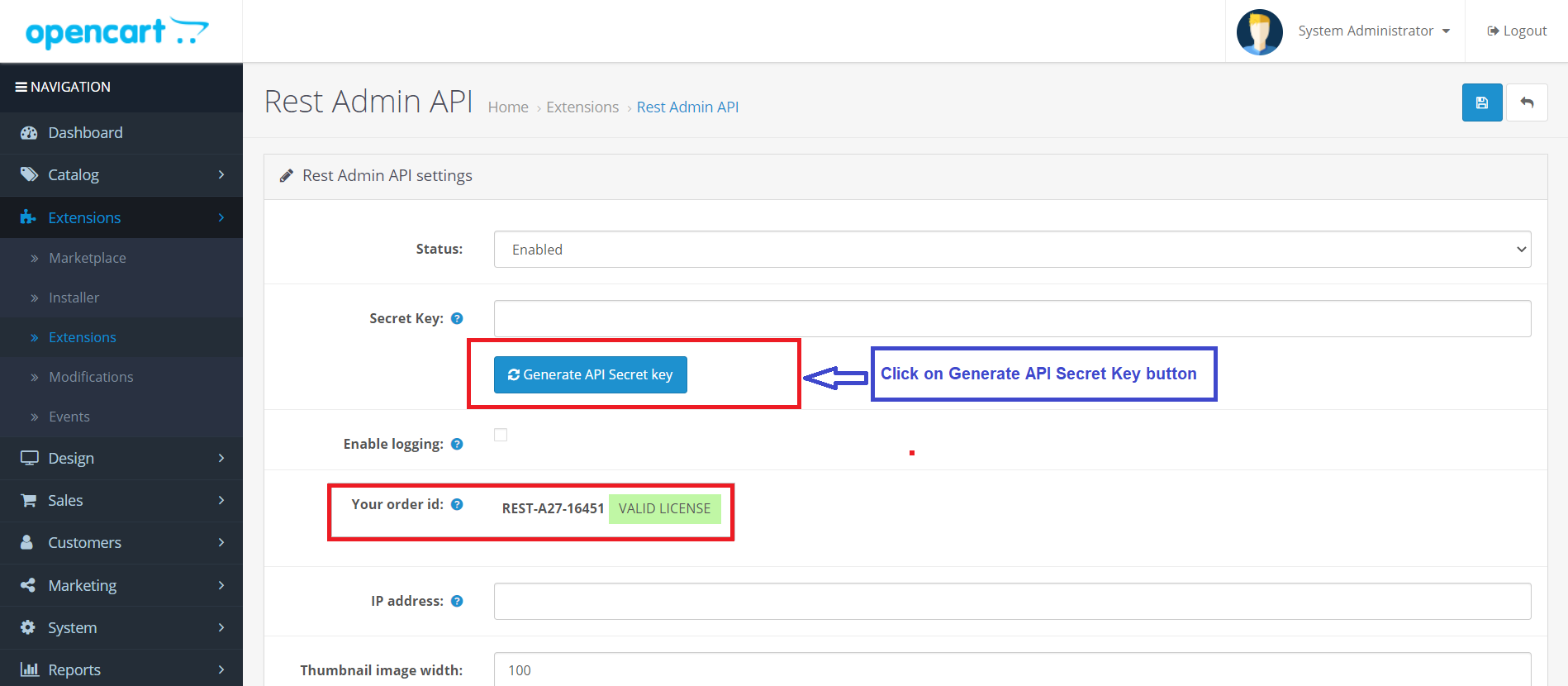

5. Enter the Order ID received on the email in Your Order ID field and click on Activate License Click on the Generate API Secret key button.
6. Your Opencart API Secret Key will be generated.
Connect Octopus to Opencart
1. Go to https://gui.octopusbridge.com/octopus
2. Login using user octopus account credentials.

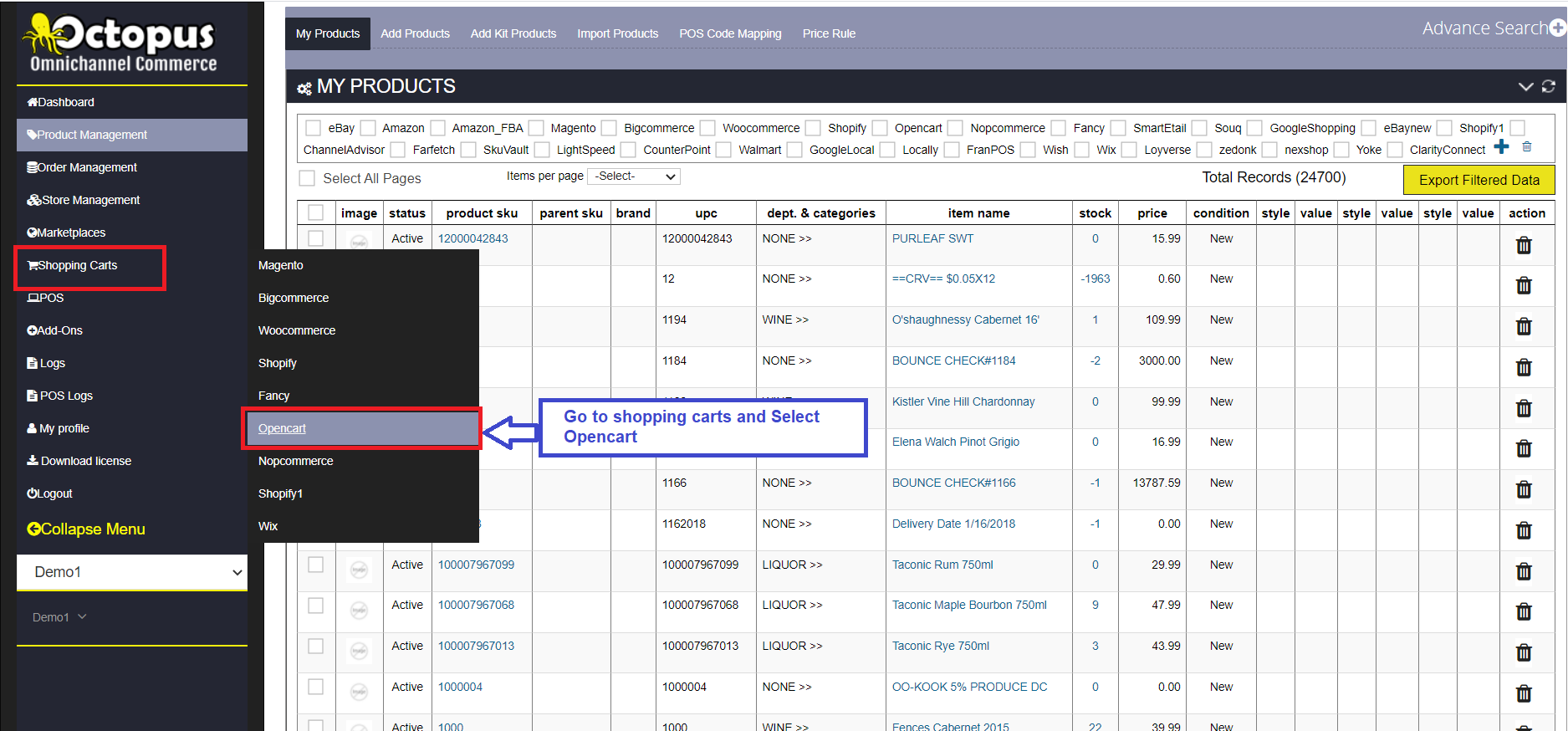

3. Once you have logged in, go to shopping carts/Opencart.

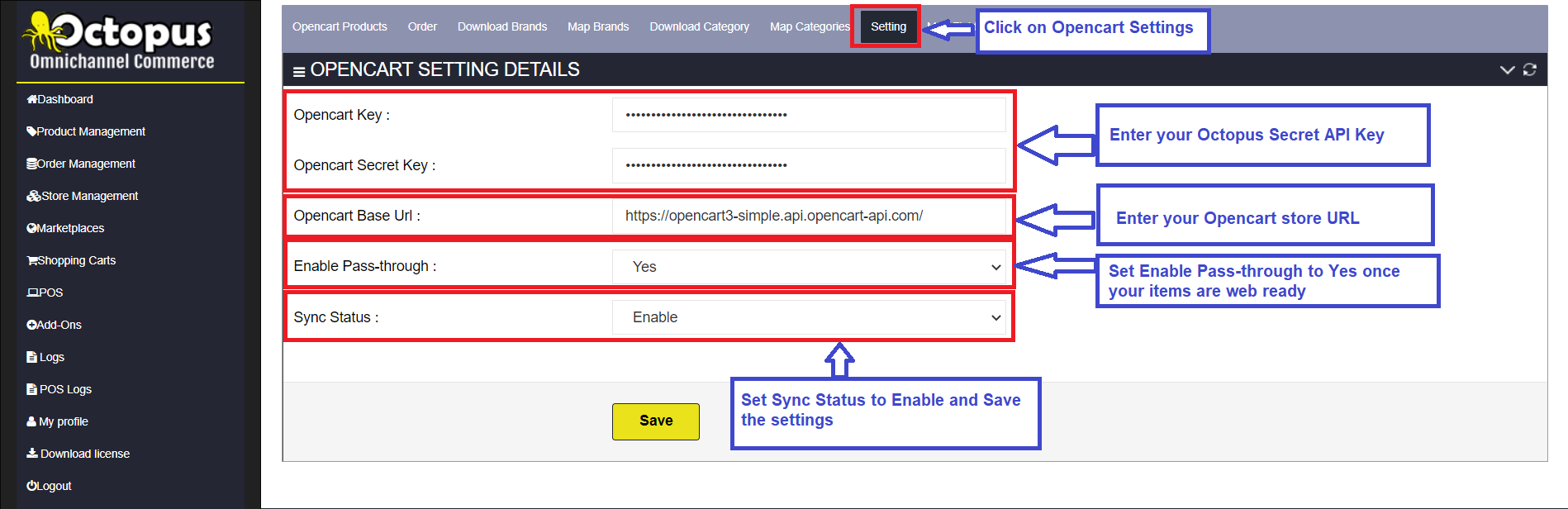

5. Click on settings and enter the following information
Opencart Product Module
In Product Management, when an Item is selected to be published to an eCommerce platform, it is first sent to the specific Shopping Cart Module (SCM). SCM for each supported shopping cart, including marketplaces such as Amazon and eBay, gives users the ability to define shopping cart specific rules.
These rules may vary based on the eCommerce platform that you are using. For example, Items being sent to Opencart may have a different Product Name, Prices, and Quantity as compared to items being sent to eBay.
Whereas ‘Product Management’ module shows all the products uploaded from the POS, Opencart Product module shows only those items that are actively synchronizing with Opencart.

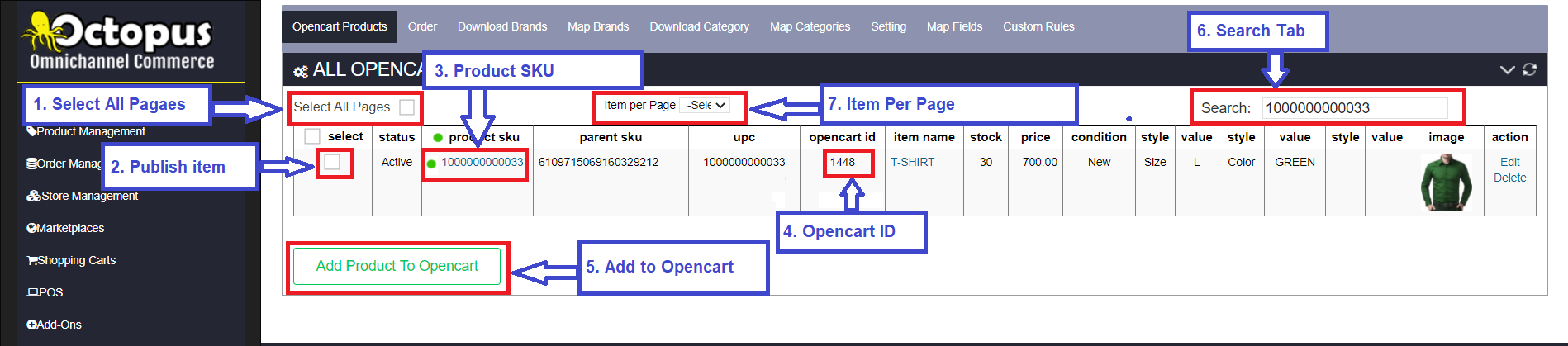

All Opencart Products

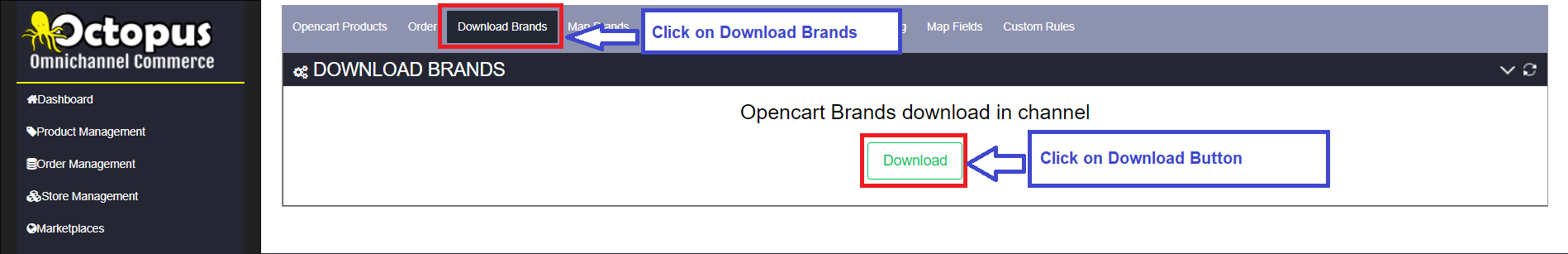

Download Brands
If you intend to use Brands on your website, you need to create them in Opencart and download them into Octopus. Click on the Download Brands button to start downloading. Once Brands are downloaded in Octopus, they will show in Map Brands section.

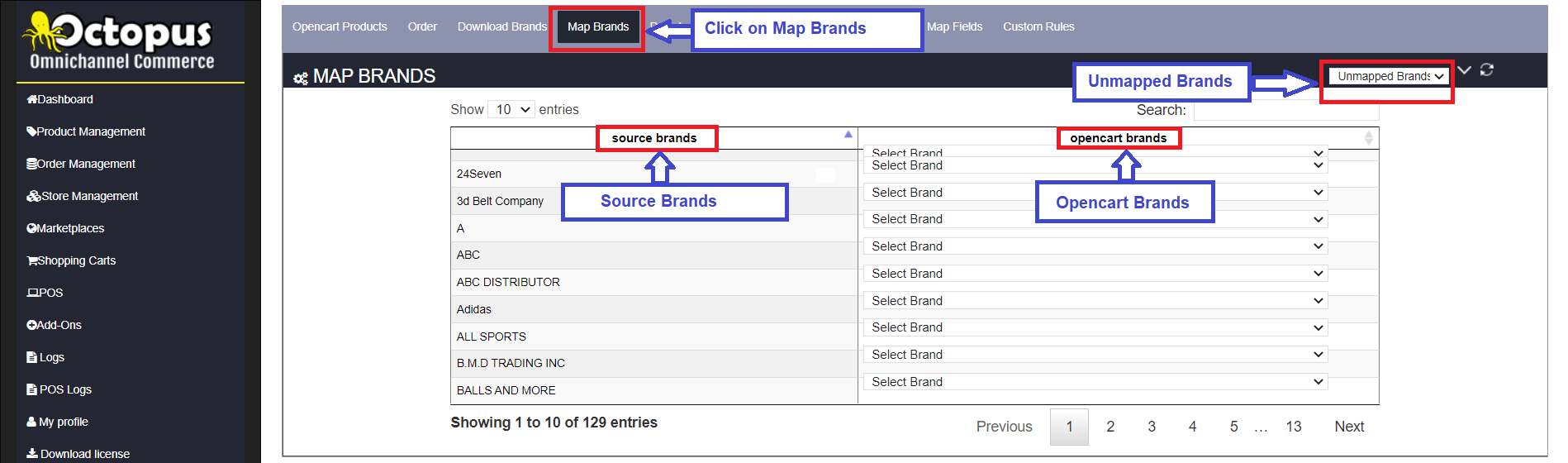

Map Brands
This option allows to ‘map’ POS Brand structure to Opencart Brands so that POS brand labels are placed in the right item when loaded into Opencart platform.
Download Categories
In order to make sure products are displayed in the correct product category in Opencart, make sure to create your Department & Category structure in Opencart first. Once created, you can Download Category structure into the Channel.

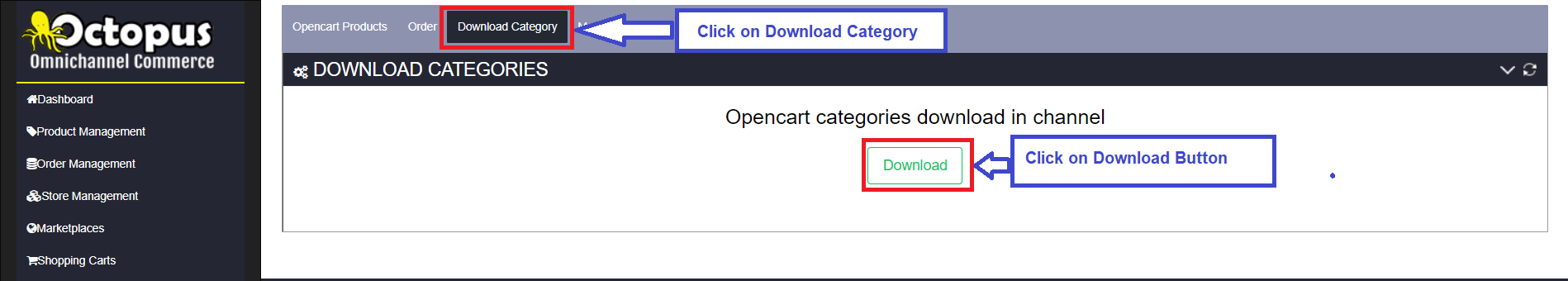

To download Opencart Category:
Once you download categories it will show how many categories that are downloaded successfully.
Note: Always download categories to update Octopus every time you create/update a new category in Opencart.

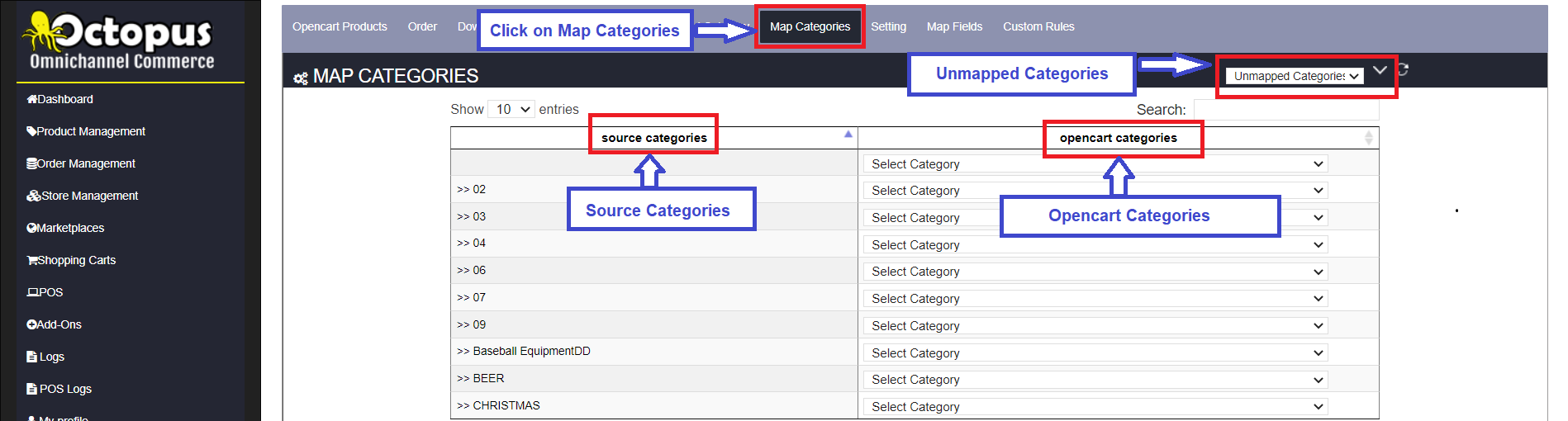

Map Categories
When items are uploaded from a POS into Octopus, they are uploaded with POS Department & Category structure. At the Octopus level, it’s called Source Categories.
POS Category structure may or may not be the same as Opencart Category structure. This option allows to ‘map’ POS category structure with Opencartcategories so that POS items are placed in the right category.

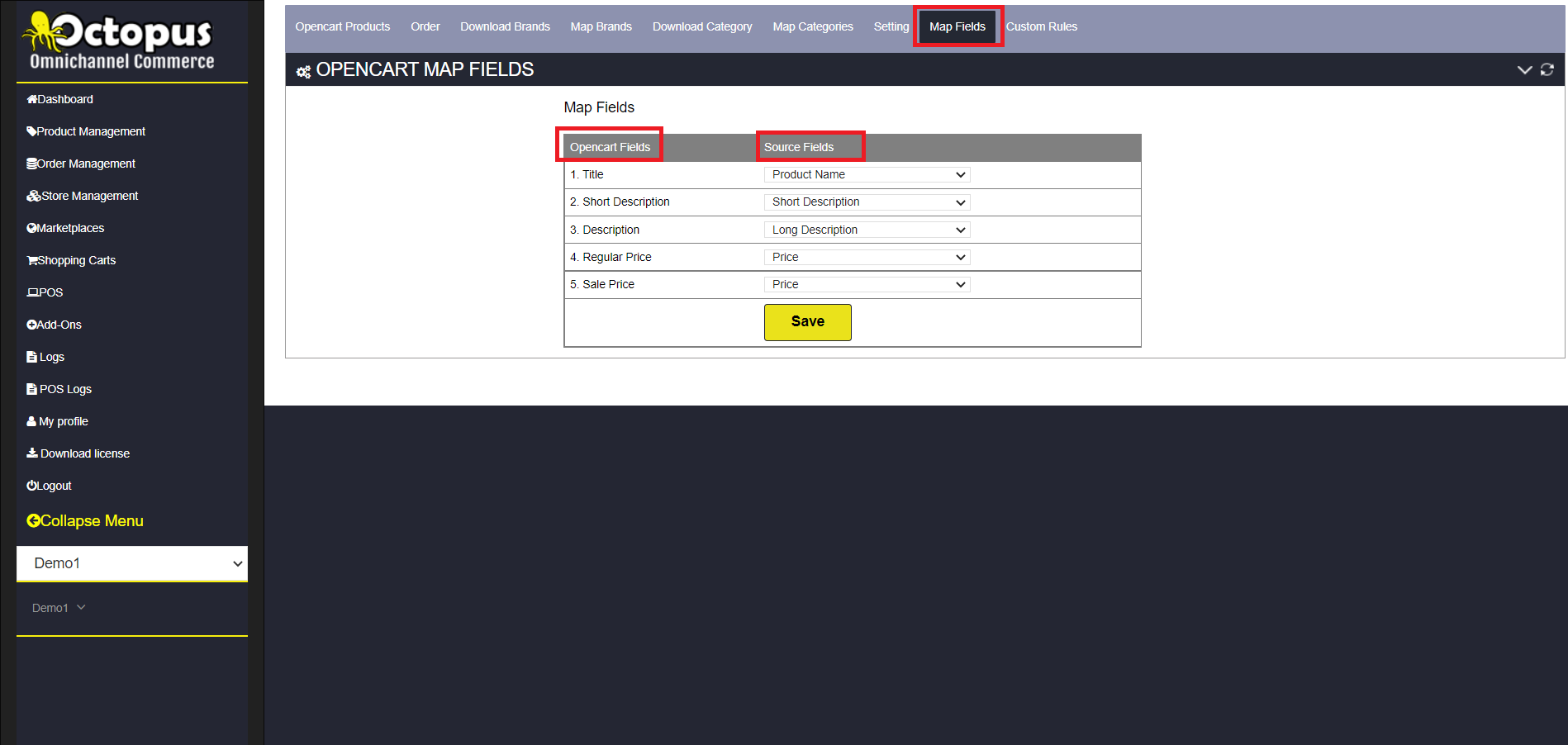

Map Product Attributes
Merchants using various POS systems may use any of the fields within a POS while creating items.

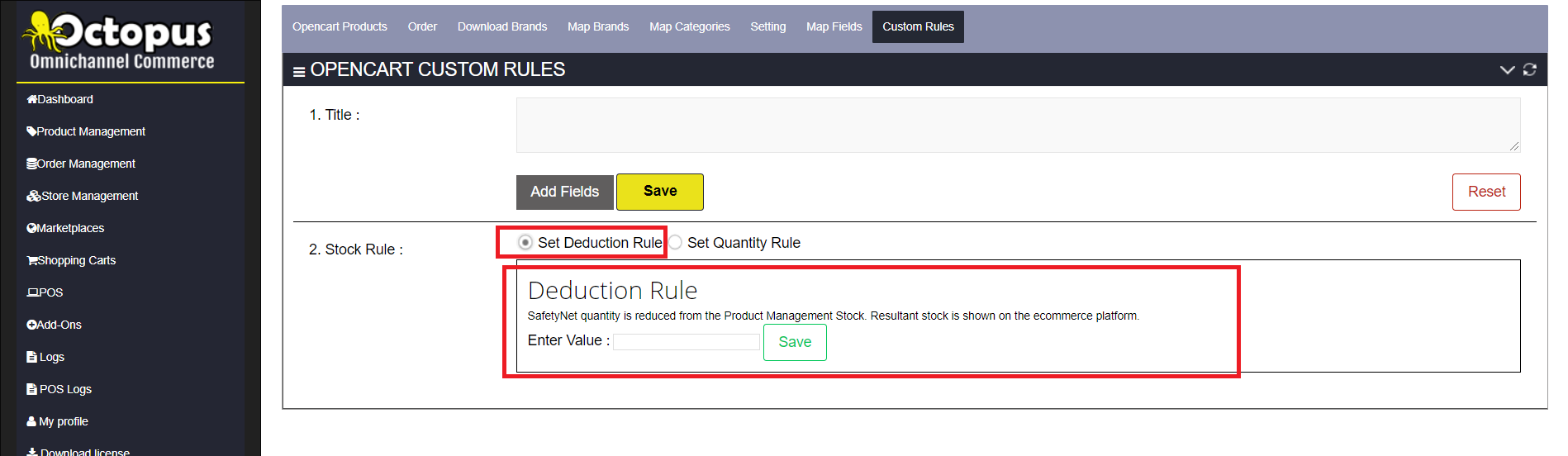

Custom Rules
In the Custom Rules tab, product-specific rules should be defined before the items are set up to sync with Opencart. Once done, all items synchronizing with Opencart will inherit these rules.rule(s) set here will be applied to all the products being uploaded from Channel to Opencart.

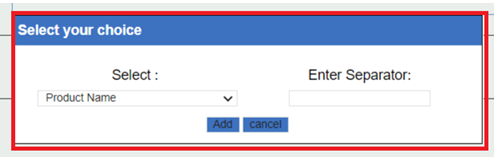

Custom Title: This feature allows you to create a search engine friendly Product Name by combining multiple fields. For example, you may want to use Product Name and Brand fields from POS to create a unique eCommerce product name, resulting in ‘Product Name by Brand’.
Going forward, before an item is sent to Opencart, this rule will combine the fields to create a unique name. If left blank, Custom Tile does not apply.
Set Deduction Rule:The quantity inserted in this box is reduced from the Product Management stock. For example, if a Product Management item quantity is 50 and you insert 10 in the ‘Enter Value’ field; in Opencart, the quantity of the item will be shown as 40.

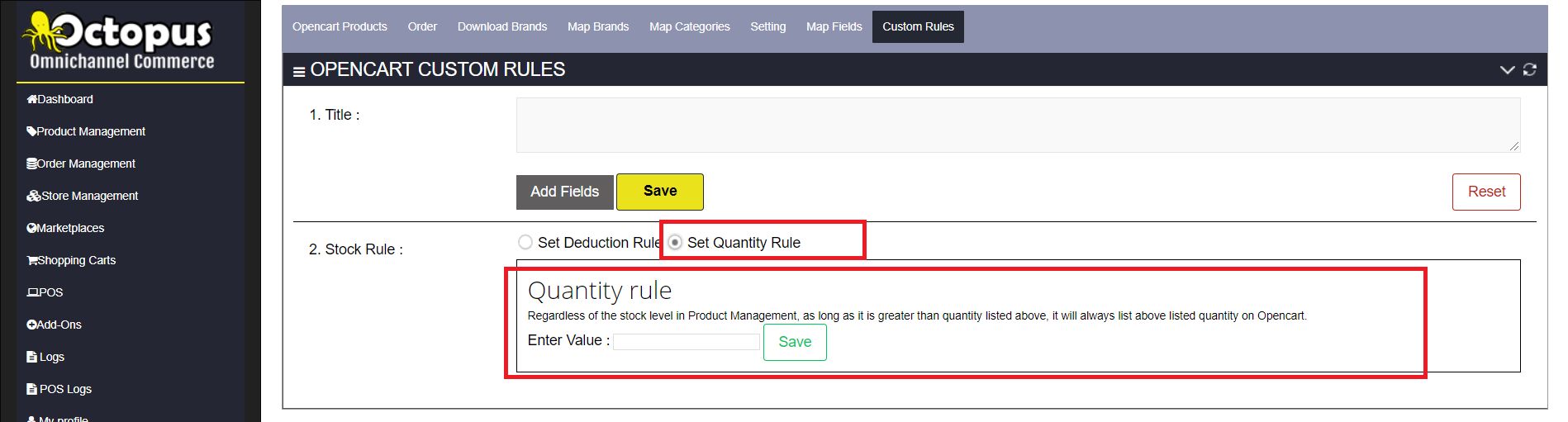

Set Quantity Rule: Regardless of the stock level in product management, as long as the quantity in opencart is greater than the quantity entered in the enter value field, the product will remain in stock in opencart. As soon as the quantity becomes equal to the quantity entered in the box, the product will become “Out of Stock” on Opencart.
