Liquor POS BigCommerce Integration Manual

After you sign-up with Octopus Bridge, you will be given the login details. Login details are your Username and Password. You can login to your account at http://gui.octopusbridge.com/octopus

Once you login to Octopus Bridge using your login details, you are automatically redirected to the Product Management tab where you will be able to see all the items uploaded from the POS.

In the product management module, a user can perform the following actions:

Advance Search: To view advance search, click on the + button on top right corner of the screen.
Push Products to Shopping Cart: To push products to the shopping cart.
Select All Pages: This will Select all the products listed under the Product Management module
Items Per Page: This will allow to select the no. of items you want to display per page.
Select All Items on Current Page: Clicking on this checkbox will allow you to select all products on the current page.
Edit Product: Click on Product SKU or Product Title to edit product information.
Delete Product: To delete a product, click on the checkbox in front of that particular product and click on “Delete” icon located in right side of the screen.

Advance Search

You can search for a specific item with the following search criteria:

Source Category
Item SKU
Item Description
Item Keyword
Parent SKU
Brand
Marketplace
Item Status
Location
Style
In stock?
Supplier
Date Added
Price Range
Stock Level
Image Status
Custom Fields
Store

If Product items are not shown after doing search, it means that the product item is not yet synced from the POS. Also, make sure that in searching items, you are using the correct Item SKU or Parent SKU. Example below shows that item is not yet found in Octopus Bridge.

Edit Product

Clicking on Product SKU or Item Name will redirect you to ‘Edit product’ page. This is where you can edit products’ information that are linked from the POS to Octopus Bridge. You can perform the following actions in Edit Product page:

Edit Product Name: You can create new product name to be displayed in your E-commerce platform. Make sure to click on the box to prevent over-writing Product Name from the POS.
Create Parent SKU: Make sure to create a Parent SKU for creating matrix items.
Create Product Description: If you want to create a new description to be displayed in your E-commerce platform, make sure to check this box to prevent POS description from over-writing description in your E-commerce platform.
Matrix item attributes: If you are creating a matrix item, make sure to input Style Name and Style Value.
Upload Product Images: You can upload up to five images per item in Octopus. Make sure to reload page after uploading image/s.

Publish Items to Shopping Cart/Marketplace

After you have updated an item under ‘Edit Item’ page, you can go ahead and publish this item to a specific Shopping cart or Marketplace. Under Product Management tab.

1. First you need to select which item/s you want to publish. The example below shows we are selecting three items.

2. Next, select which Shopping cart or Marketplace you want to publish the item. In the example below we are selecting Shopify as our shopping cart.

3. Then click on the Add icon on the right to publish. Once you are done, items can now be viewed under the Shopify 'bucket.

Import Products

If you do have a point-of-sale system or want to quickly edit items by Exporting / Importing multiple items, Import Products is a great option.

1. Click Add New Template to start .

2. Click History to select a file previously uploaded on Octopus Bridge.

3. Click Import New to import a new template after it has been created.

4. Action:

Notify- you can type in your email to get notifications if modifications are being made in the file.
Modify- click to update files.
Delete- delete existing files from the list.

POS Code Mapping

You can use POS code mapping if you want to map POS values to octopus bridge values. POS values are commonly in a coded format. For example, blk. You need to set blk into black which is more understandable for users viewing the website. You can also map multiple values at the same time using a spreadsheet format.

POS Code Upload Format: You can download the excel format by clicking on the “POS Code Upload Format” link.
Choose File: Once you have made changes in the excel format, select spreadsheet file to upload.
Click on upload after selecting file.
Select Field Name.
Replace All Value: Click to replace value after selecting Field Name.
Item per Page: Clicking this will create a drop-down box where you can select how many product items to be displayed per page.
Search: You can search specific value using the search bar.
Channel Value: Edit Channel value here.

Order Search

You can search for a specific order with the following search criteria:

Source of Order: You can select the shopping cart/marketplace from where the order was placed
Order Status: Ordered/Shipped/Declined
Order No: Specific order number of shopping cart/marketplace
Username/email address: Customer’s username or email address
Date Filters: Sort order on a specific date period
SKU: Item SKU Number

All Orders:

Order Date: The date and time when the order was downloaded

Channel Mgr Order #: Each order, when downloaded into Octopus, is given an Octopus order number. This number is also pushed to the point of sale system for reference.

Marketplace Order #: This is the order number received from your website or marketplace. The number is prefixed by the platform abbreviation for easy reference. This number is also downloaded into the point of sale system.

Customer Bill To and Customer Ship-To Details are received from the website.

Total: The total amount of the order.

Status: Depending on where the order is coming from, it would be either in Pending/Processing or Paid status. Orders coming from marketplaces are marked Paid as they are already paid for. Orders coming from websites built on Magneto/Woo/etc might be marked as Processing depending on how the website is set up.

Tracking: This feature is only applicable for Offline POSs, such as RetailPro, RMS etc. Octopus Plugin updates the Tracking Number on our system generated by the Shipping company of the Merchant. It also works for the merchants, who uses Ship Station and Ship Work integration with Octopus.

Action: When orders are downloaded from website into Octopus, all items must match with items uploaded from the POS. For example, if an ordered item has a different SKU than what was uploaded from POS, the order will NOT be downloaded. In such cases, Edit link will show. This allows you to Edit the order and fix the SKU number so that it matches with one of the existing items. After the SKU has been fixed, the order would download during the next sync cycle. Orders not showing Edit indicates that the orders have been downloaded into POS and cannot be edited.

Page Tab: You can navigate to a particular page by clicking on that particular page number.

Downloading Orders

Orders are downloaded automatically from the E-commerce platform to Octopus on a scheduled basis. You can also manually download orders from a specific E-commerce platform. Just click on the orders tab in the Shopping cart module you selected then click on the ‘Download orders from Shopify’ button.

Order Details

In order details page, you can view all the order information downloaded from the e-commerce platform to Octopus.

Order Details: Order details section contains the following information:

Order No
Order Date
Current Order Status
Billing Address
Shipping Address
Customer Contact Details

Order Summary: Order summary section contains the following information:

SKU
Identification number
Seller SKU
Description
Quantity
Unit Price
Shipping Amount
Tax
Discount
Grand Total

Installing odbc Drivers

The first step is to install the odbc drivers for configuration of index files of Liquor POS database.

The installation process is described below:

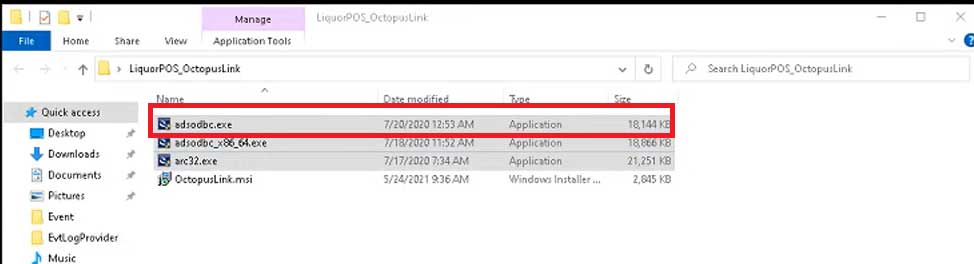

1. Once you unzip the setup package, you will get the following files:

- exe
- exe
- 2xe
- msi

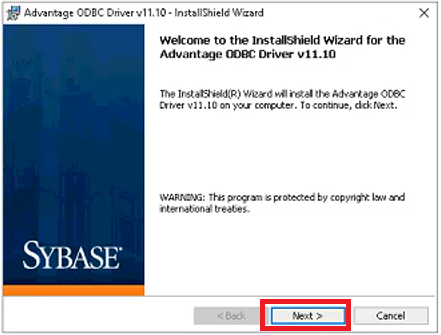

2. Click on adsodbc.exe and setup wizard will start.

3. Click on Next button

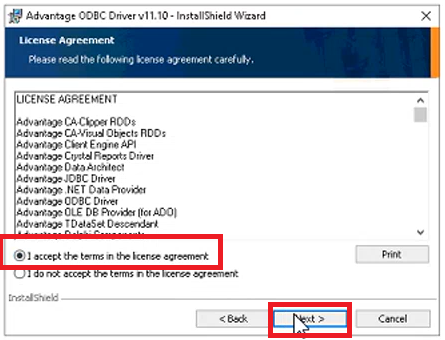

4. Click on I Accept Terms in the License Agreement and click on Next

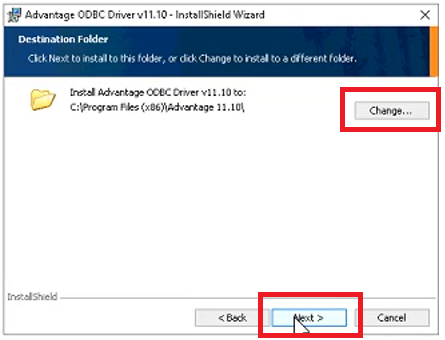

5. Select the destination folder where you want to install the plugin and click on Next button.

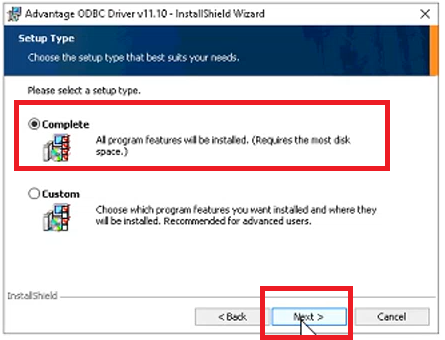

6. In setup Type, choose Complete and click on Next

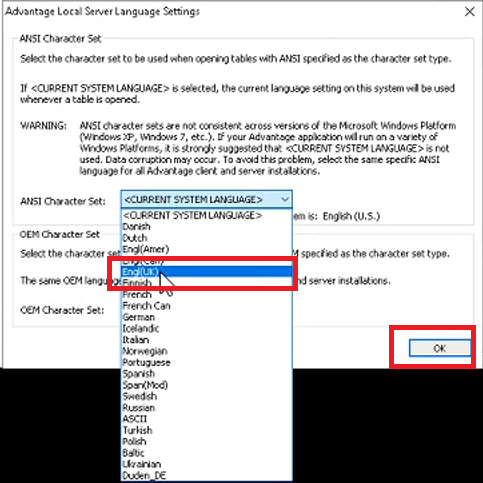

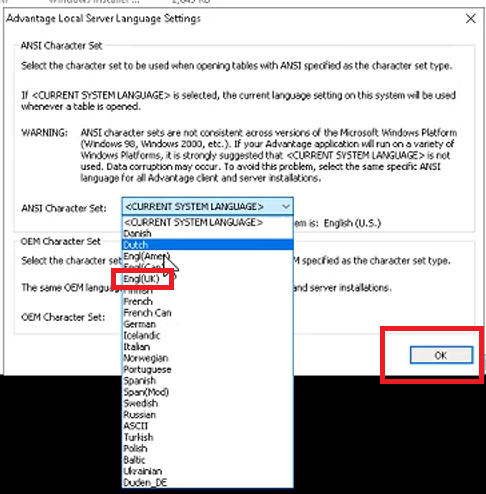

7. In the Advantage Local Server Language Settings pop-up, Select English (UK)for ANSI character set dropdown, and click on OK

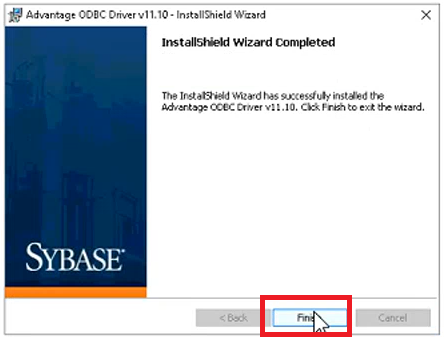

8. Click on the Finish

9. The odbc driver installation is complete.

Installing Advantage Data Architect

Once the odbc driver is installed, we need to install the Advantage Data Architect. It is GUI tool that we use for configuration of index files of Liquor POS.

The installation process is described below:

1. Once you unzip the setup package, you will get the following files:

exe
exe
2xe
msi

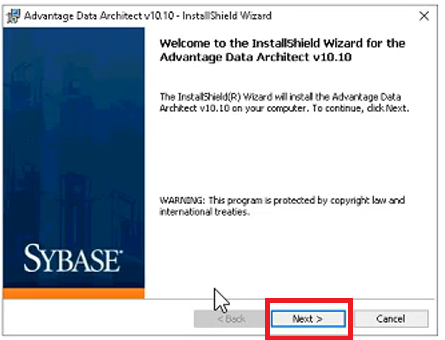

2. Click on the arc32.exe and the setup wizard will start.

3. Click on Next

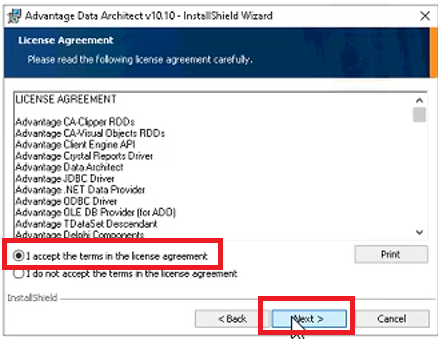

4. Click on I Accept Terms in the License Agreement and click on Next

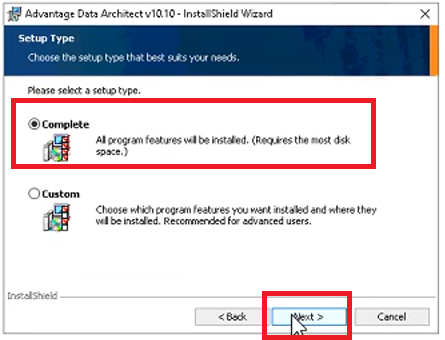

5. In setup Type, choose Complete and click on Next button.

6. In the Advantage Local Server Language Settings pop-up, select English (UK) for ANSI character set dropdown, and click on OK

7. Click on the Finish

8. The Advantage Data Architect installation is complete.

Configuring the Index Files

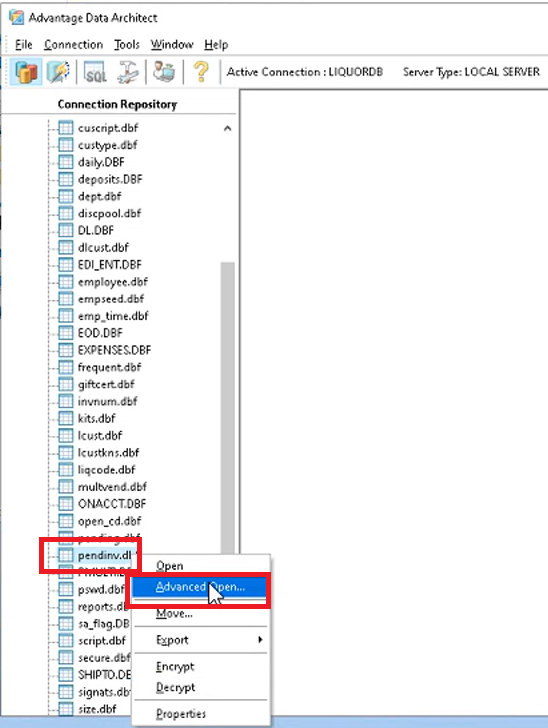

Configuring the pendinginv.dbf file

Open the Advantage Data Architect.
In the connection repository, select DBF file.
Right click and select Advanced Open.

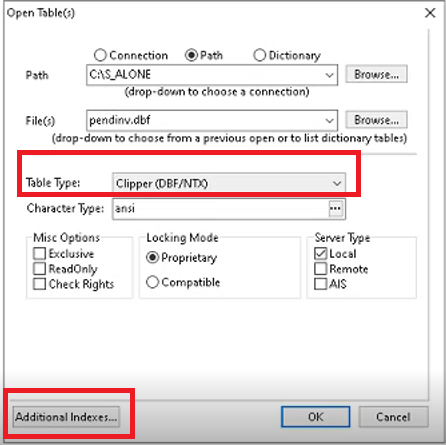

4. Select Table Type Clipper (DBF/NTX)

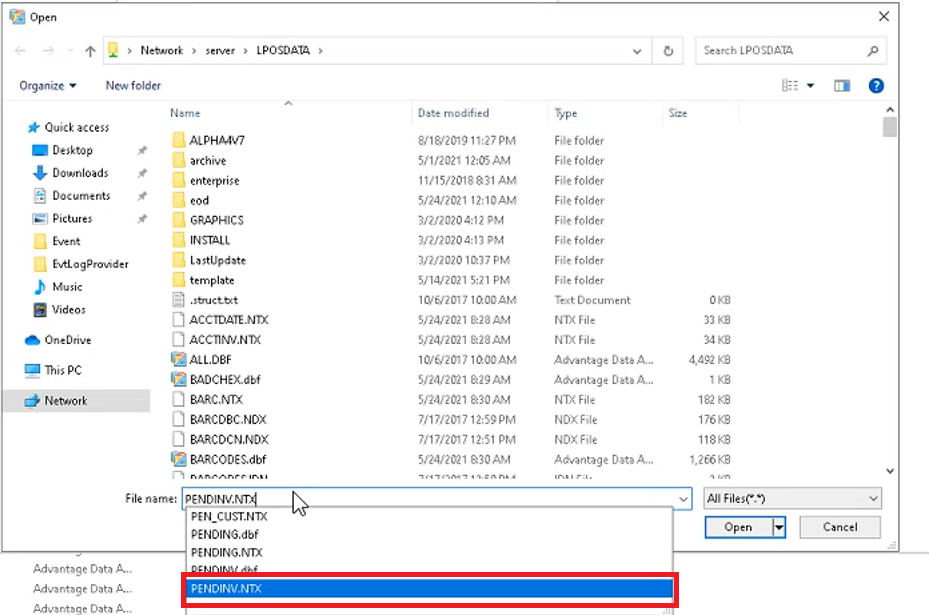

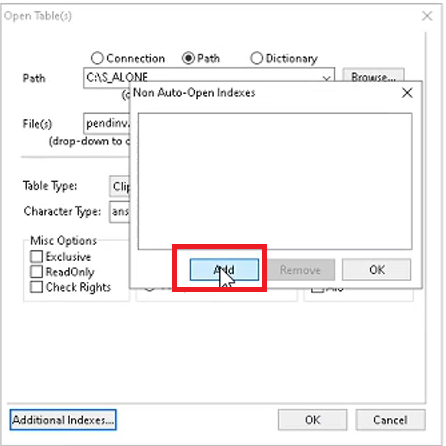

5. Click on Additional Indexes and click on Add.

6. Select NTX and click on OK.

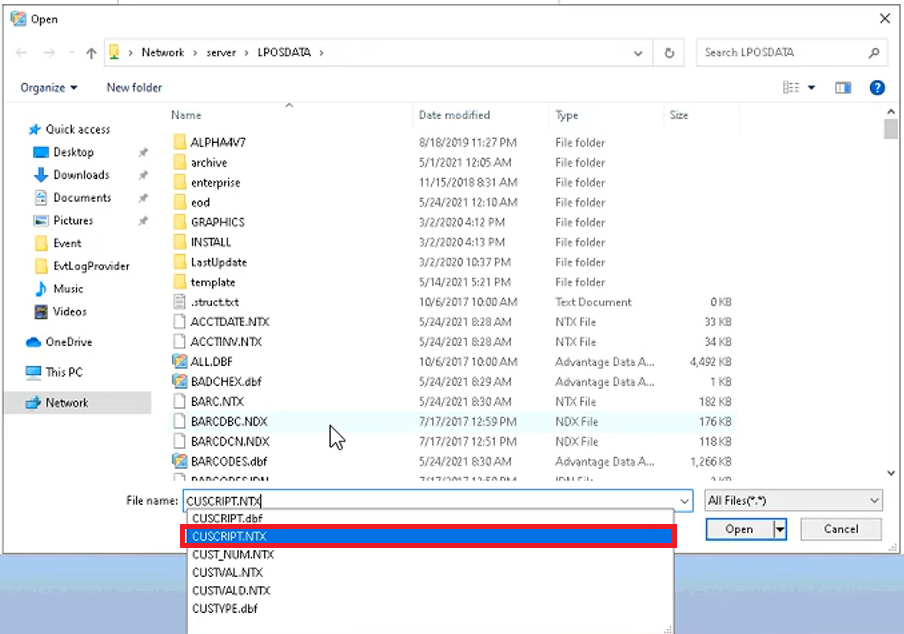

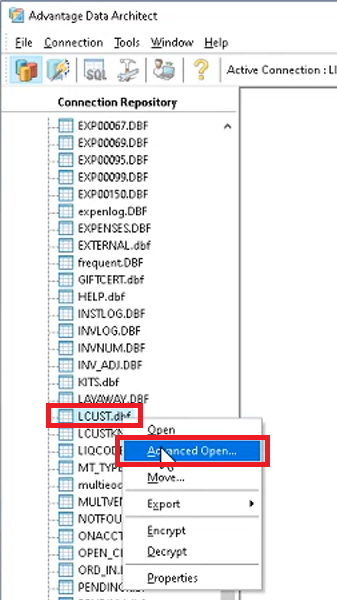

Configuring the LCUST.DBF file

1. In the connection repository, select DBF file.

2. Right click and select Advanced Open.

3. Select Table Type Clipper (DBF/NTX)

4. Click on Additional Indexes and click on Add.

5. Select NTX and click on OK.

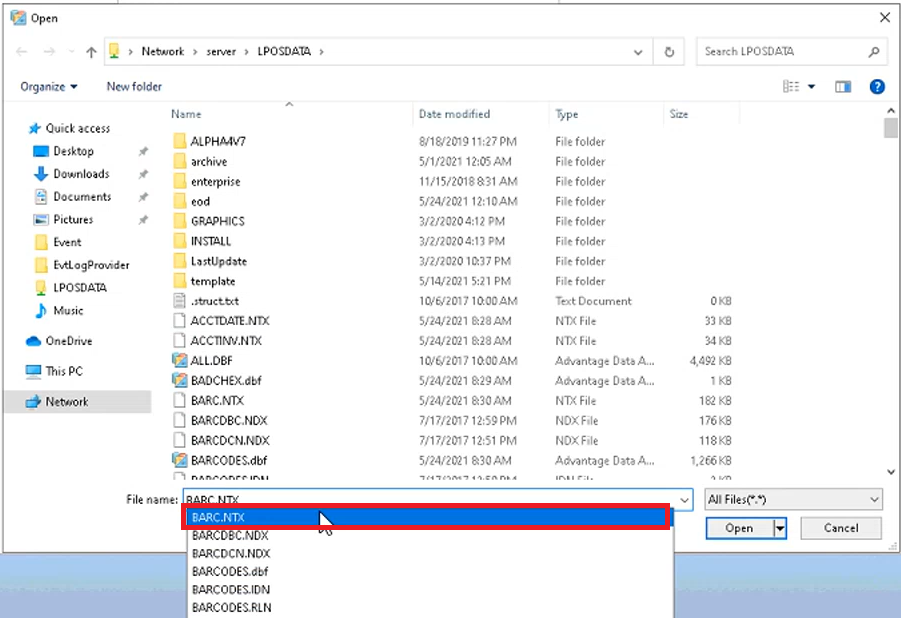

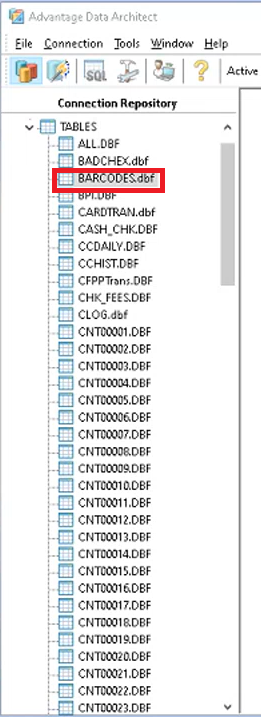

Configuring the Barcode.DBF file

1. In the connection repository, select DBF file.

2. Right click and select Advanced Open.

3. Select Table Type Clipper (DBF/NTX)

4. Click on Additional Indexes and click on Add.

5. Select NTX and click on OK.

Installing Octopus Link

Octopus Link (also referred to as “integrator”) offers a complete interface to integrate your Liquor point of sale system with Octopus.

The installation process is described below:

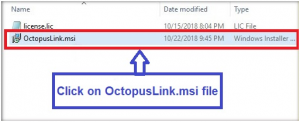

1. Once you unzip the setup package, you will get two files – lic and OctopusLink.msi. Please click on the OctopusLink.msi file and you will be taken to the Octopus Setup Wizard.

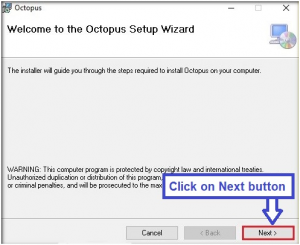

2. Once Octopus Setup Wizard opens, Click Next.

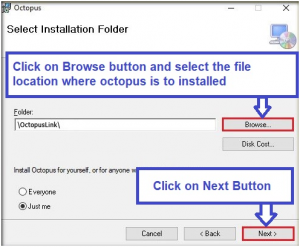

3. Click on Browse and select the file location where Octopus Link is to be installed. After selecting file location click Next to start the installation.

5. You should have an Octopus Plug-in icon your desktop.

6. Click on the icon to open User Authentication. Type in your Username, Password and click Browse to enter the License key provided and click Continue. User authentication information should have already been provided to you by the support team.

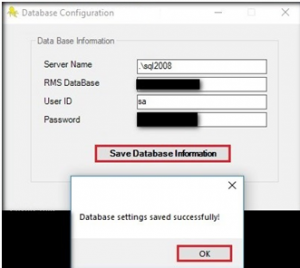

7. Enter the Database Information for Liquor and Click Save Database Information. You may need to ask your Liquor POS administrator if you don’t have the login details.

Configuration Settings

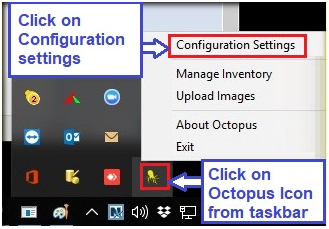

1. Access the Octopus plugin from the Taskbar menu. Right click on the yellow Octopus icon and it will display a few options. Click on Configuration Settings.

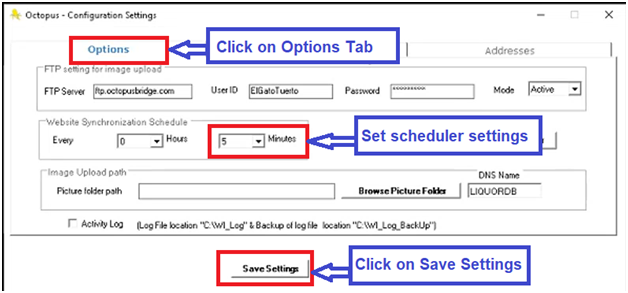

2. Scheduler settings can be Set/Changed under the Options This determines how often your items are updated and orders are downloaded.

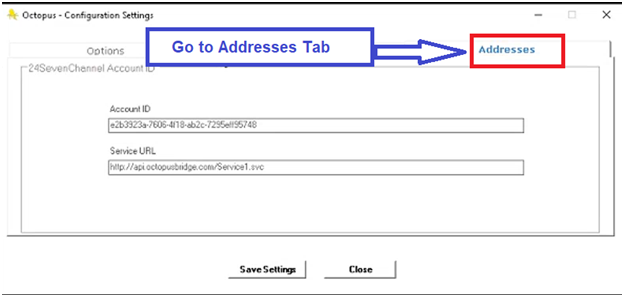

3. Once you have set-up the Scheduler, go to the Addresses The Account ID and service URL should be auto populated.

Note: The URLs displayed in this tab are automatically populated through your license file and you should not change any of these unless explicitly advised to do so.

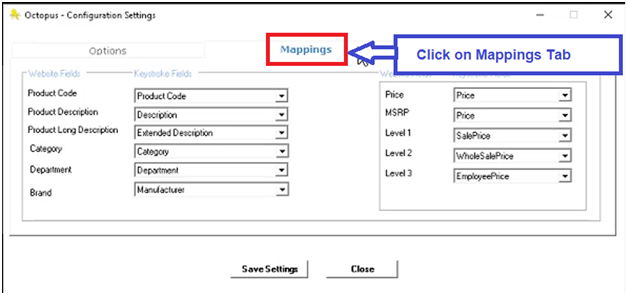

4. Mappings tab allows you to map POS fields with website. For now, please leave it as default.

Finally, once you Save Settings please right-click the Octopus Link icon on your system tray, click exit, and restart Octopus from your desktop or Start menu.

Enable Pass-through: When setting up the configuration for the first time, this option should be set to No.

Setting No, means that any items uploaded from the POS to Octopus will remain at Channel level. These items will not be pushed to your BigCommerce platform unless it is done manually. This is the recommended setting while configuring the system for the first time.
You also may set this to No if you have set up your POS to upload All items into Octopus, but you do not want to send All items, automatically, to your eCommerce platform. Setting this to No gives you the opportunity to make items web ready before publishing them to your website.
Once you set it to Yes, any items uploaded from the POS will automatically be pushed to your BigCommerce platform. This is recommended only when the settings have been fully configured and tested.

Sync Status: Select Enable

BigCommerce Product Module

This screen shows items that have been enabled and scheduled to automatically sync with a Big Commerce website.

Select All Pages: Instead of waiting for the schedule to run and sync items with Big Commerce, you can also initiate a sync manually. To publish items manually,
Select All Pages and Publish. Select: You can also use the boxes to the right to select specific item to publish.
Product SKU: The icon besides the product SKU is an indicator if a product is successfully forwarded to the website. Green means successfully synced while red means it is not.
Big Commerce ID: When an item has been successfully set up to sync with Big Commerce, it shows its Big Commerce ID. If an ID is missing, it means the item is not yet synchronized with the website.
Add Product to Big Commerce: This button allows you to force sync products with Big Commerce Website.
Search tab: This tab allows you search a specific item by entering the product SKU or keyword. It also displays how many items are in a Big Commerce.
Item per Page: Clicking this will create a drop-down box where you can select how many product items to be displayed per page.

Map Categories

When items are uploaded from a POS into Octopus, they are uploaded with POS Department & Category structure. At the Octopus level, it’s called Source Categories.

POS Category structure may or may not be the same as Big Commerce Category structure. This option allows to ‘map’ POS category structure with Big Commerce Categories so that POS items are placed in the right category.

The left-hand side shows the POS category structure.
Department & Categories downloaded from Big Commerce are shown on the right-hand side with a drop-down box.
The drop-down menu shows mapped and unmapped categories. To map additional categories, click unmapped categories from the drop-down menu, then select which category to map.Note: If it does not show your website categories, you may need to download them first. Please look at how to download categories section.

Map Brands

This option allows to ‘map’ POS Brand structure to Big Commerce Brands so that POS brand labels are placed in the right item when loaded into Big Commerce platform.

The left-hand side shows the POS Brand structure.
Downloaded website brands from Big Commerce platform are shown on the right hand side with a drop-down box.
The drop-down menu shows mapped and unmapped brands. To map additional brands, click unmapped Brands from the drop-down menu, then select which brand to map.

Map Product Attributes

Merchants using various POS systems may use any of the fields within a POS while creating items. Map Fields option allows a merchant to map Big Commerce product fields with their own POS product fields.

For example, Big Commerce website Product Name (Title) can be mapped with any of the POS data fields provided in the pull-down menu. This also provides an option NOT to send certain POS data to the website.

Some fields, such as, SKU and Quantity are mandatory and are automatically updated in the website.

Custom Rules

Under Custom Rules, Merchant can set various rules before publishing the product data into online store.

Custom Title: The Product Name can be edited and made Search Engine friendly.
Stock Rule: The quantity inserted in the box will be reduced from the Product Management stock. For example: In Product Management, if total quantity of an item is 50 and you inserted 10 in the ‘Enter Value’ field; in Big Commerce, the quantity of the item will be shown as 40.
Out of Stock Rule: Select the checkbox if you want to delete products from Online Store when stock reaches at ‘Zero’.
Product Availability: Choose product availability if it is Available, Disabled or Pre Order status.
Product Color Option: Select to choose different color option.
Product Other Option Type: select to choose different style options.

Default Weight: You can set the default weight of products from here.
Convert Matrix Items into Standard Items: This gives you the option to convert matrix items to All – Selecting All will convert all Source Matrix items into Standard items before publishing them on the website, With One Variation – this option will convert only those Source Matrix items into Standard where there is only one Variation or if it Does Not Apply.
Option Prefix: Enter the text you want to show in drop downs to select the attribute values in your e-commerce platform. For example – Choose, Select etc.
